AvaSpark

VESC EXPRESS AvaSpark RGB Mini

VESC EXPRESS AvaSpark RGB Mini

$30.00 USD
$30.00 USD
Sale Sold out
Tax included.

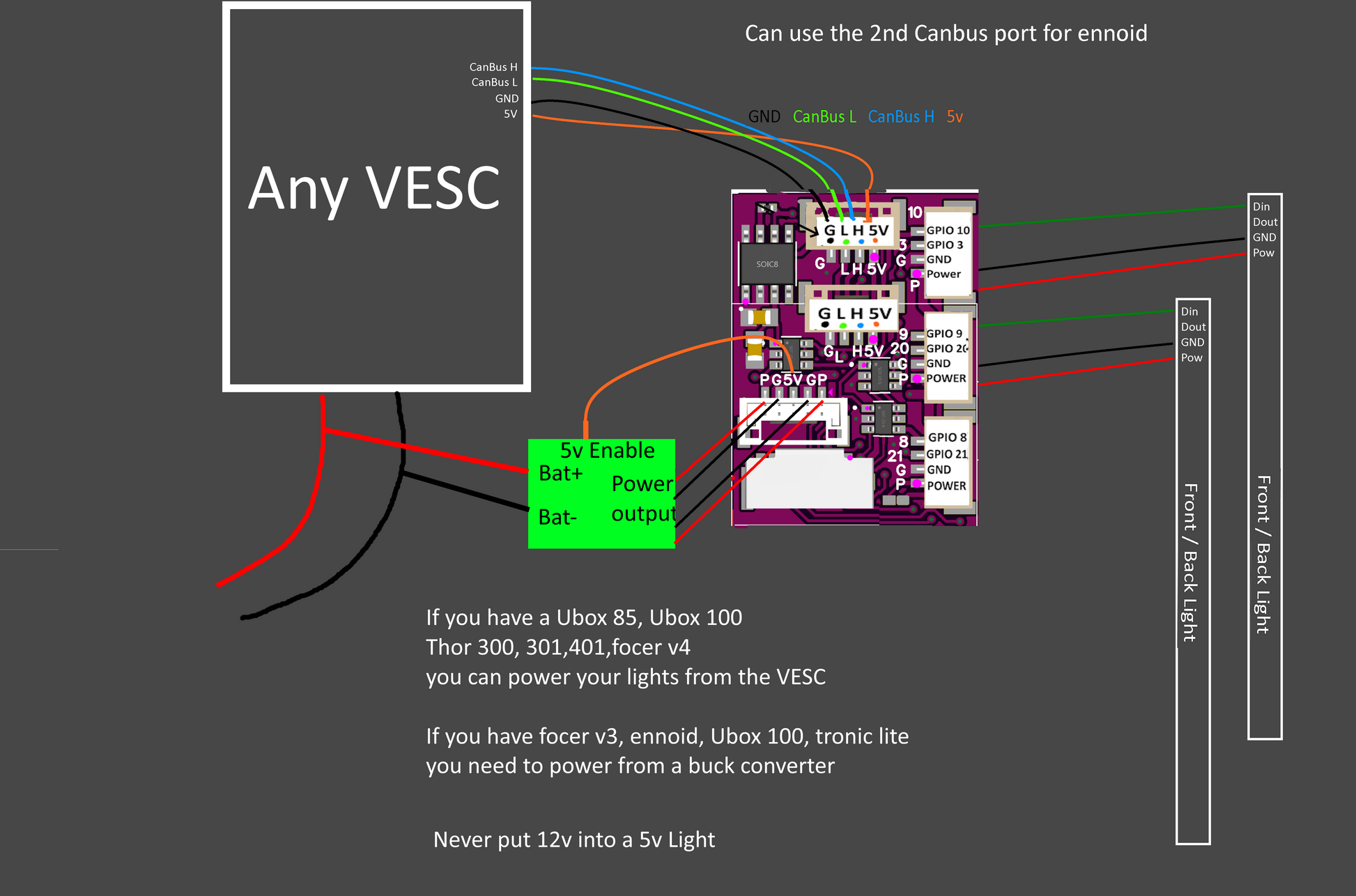

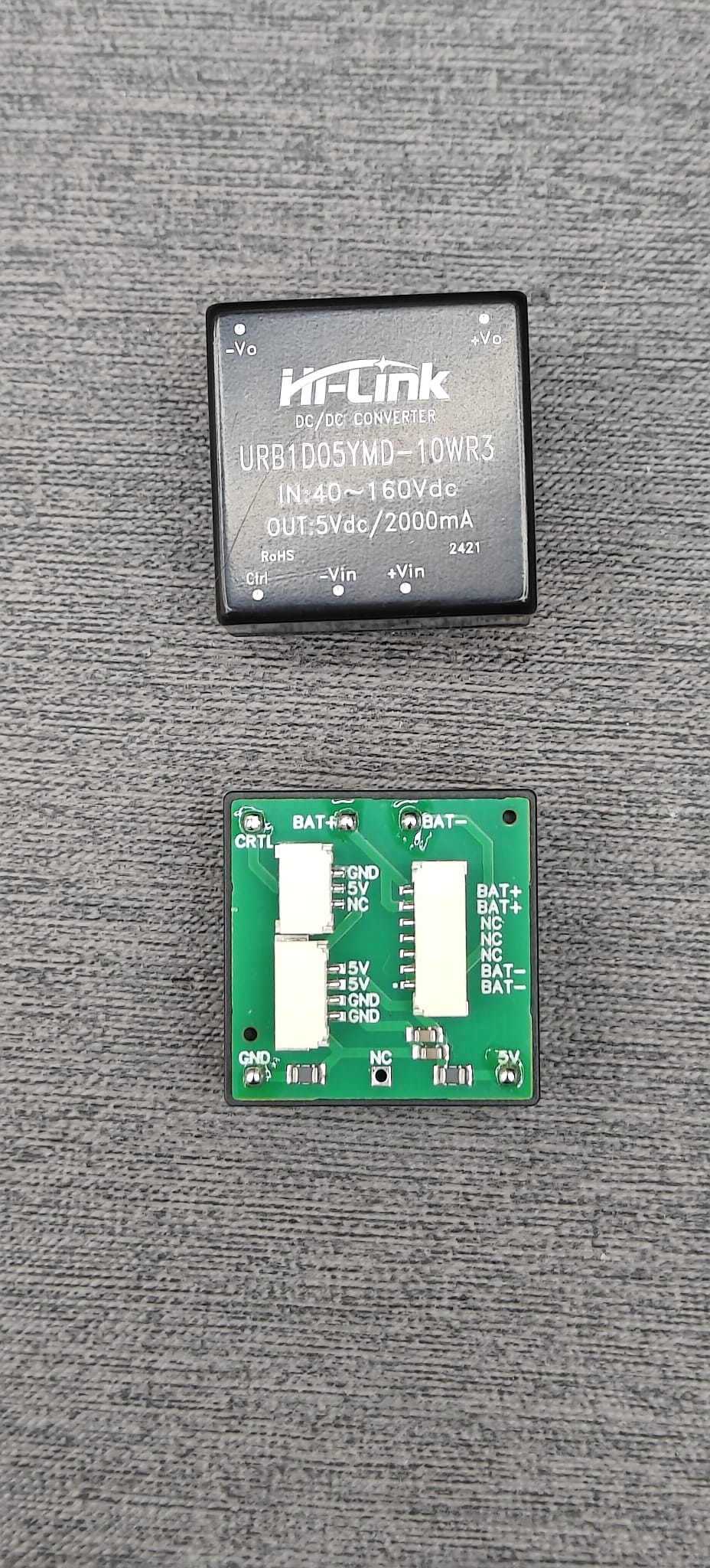

Buck converter
Lights

*Change the default canbus ID if using with multiple Vesc expresses (like with thor)*

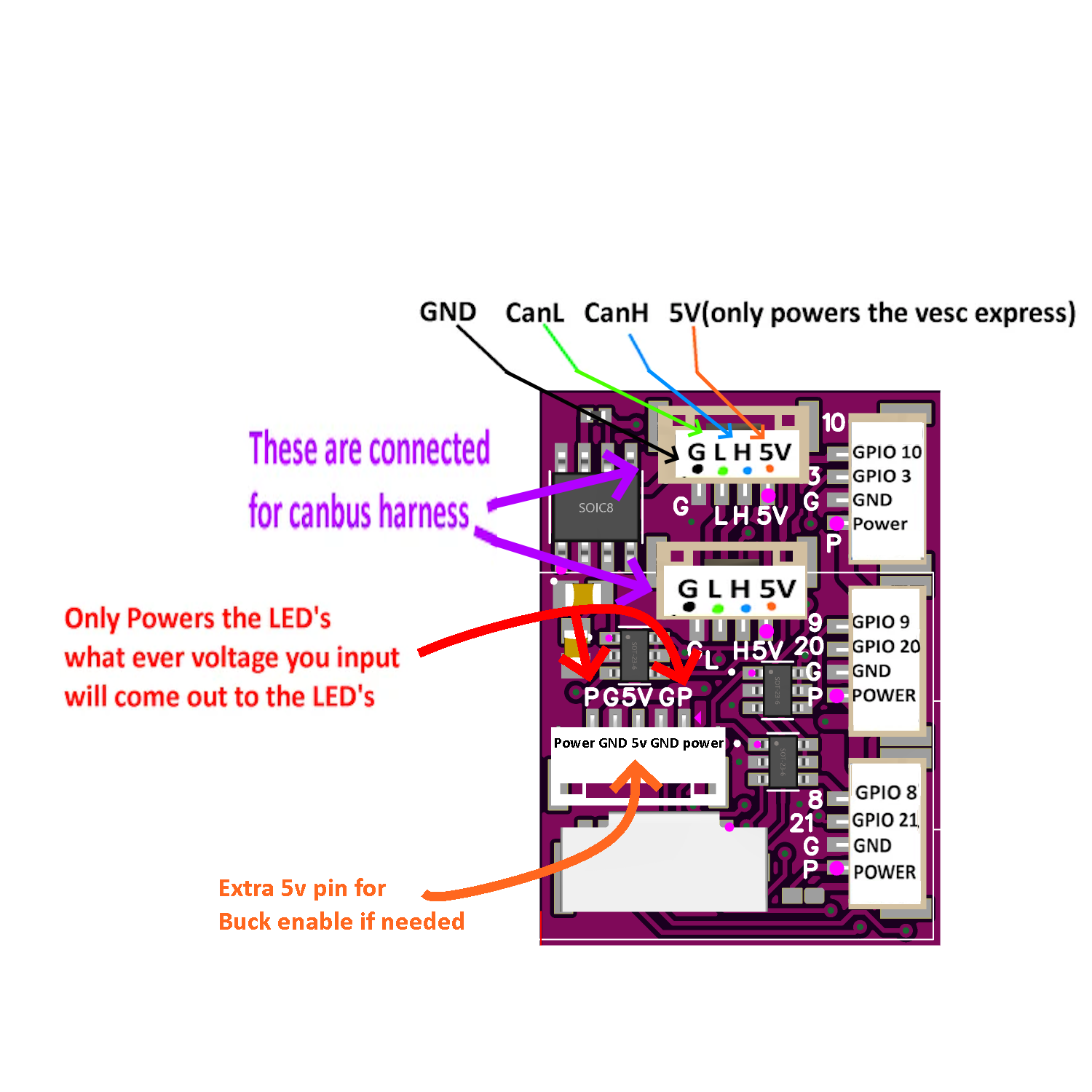

AvaSpark RGB Mini can has 3 LED outputs.
equipped with an esp32 C3, Can bus transceiver and 5v logic level output for led data lines. (does not need separate 5v logic level booster)

Uses JST GH 1.25mm connectors

If you want is unsoldered and unprogrammed for 15$ off use code "unsoldered" at checkout

Software tutorial

https://youtu.be/yZqbciLJt3w?si=EG-8XtYgFRNXnAHs

Can be programmed from.

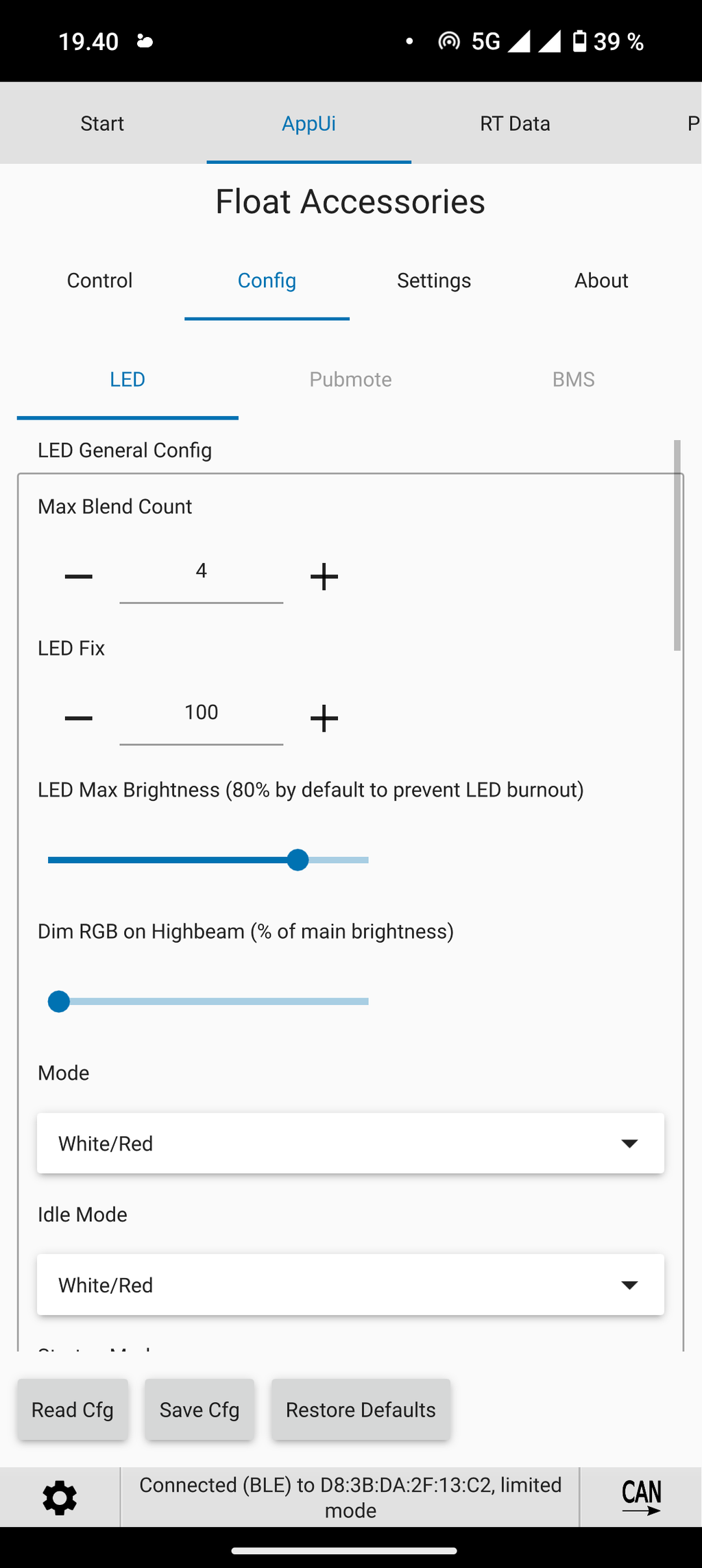

within vesc tool

Works with 5v or 12v led power input

Do not do IMU/Motor calibration with float accessories package installed

FAQ

24mm x 31mm


View full details

Customer Reviews

Based on 5 reviews
80%
(4)
20%
(1)
0%
(0)
0%
(0)
0%
(0)
D
Darkness
Ordered Feb. 3, 2025 still nothing

I bought and paid for this item because I skipped over the fact that the Ubox 75 doesn't have headlight support on-board. Now I buy this module for $35.86 in stock assumed and now nothing no confirm or tracking. This company is lacking. Good products though.

N
Nash Dietz
Works good but has software quirks

Works good for the most part but has some weird issues with needing to reboot after every change and not controlling high beams as expected

N
NikoWheel
RGB mini

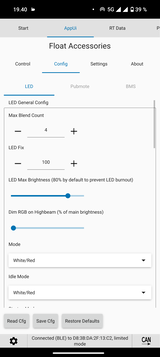

very compact, neat design, vesc Express easy to install directly with vesc Tool. The user interface is good directly in the vesc app. You can also configure different types of LEDs for the front and rear.

I recommend.

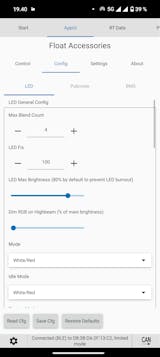

User picture
M
Mike Nichols
so easy.

just plugs in and lights work.

h
hank

Decently easy to setup and works really well once setup
