VESC EXPRESS AvaSpark RGB Mini
VESC EXPRESS AvaSpark RGB Mini
Couldn't load pickup availability
AvaSpark RGB Mini can has 3 LED outputs.
equipped with an esp32 C3, Can bus transceiver and 5v logic level output for led data lines. (does not need separate 5v logic level booster)
GEN 3 comes with 1GB SD card
If you want is unsoldered and unprogrammed for 15$ off use code "unsoldered" at checkout
Software tutorial
https://youtu.be/yZqbciLJt3w?si=EG-8XtYgFRNXnAHs
Can be programmed from.
within vesc tool

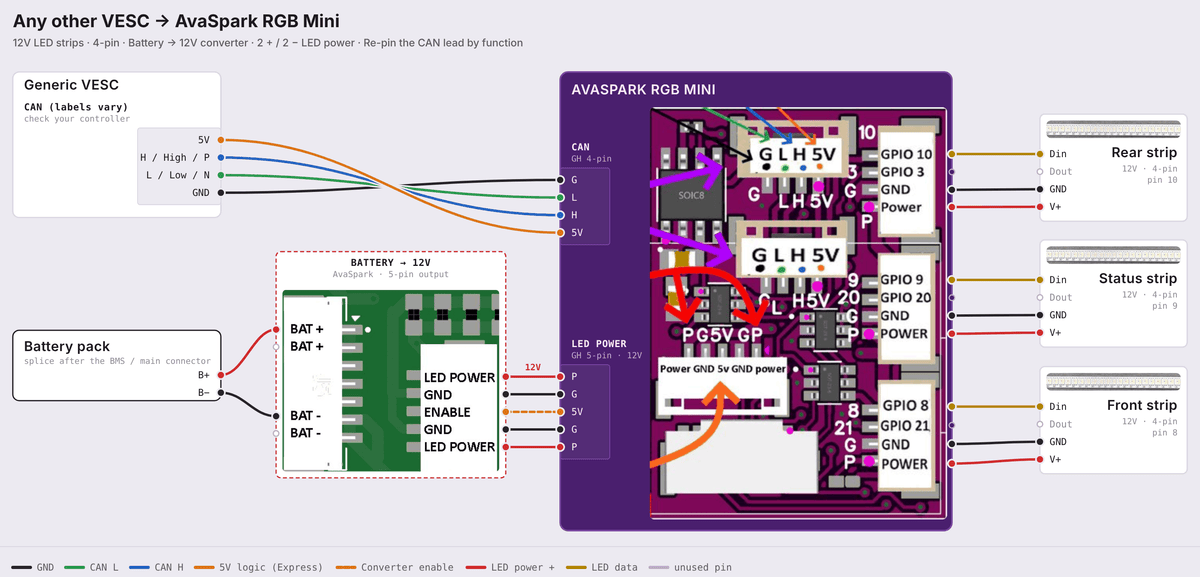

Works with 5v or 12v led power input
FAQ
24mm x 31mm
Share







Couldn't find instructions for installation anywhere . So i Kept trying to figure it our and probably bricked this module. $35 spent and several hours wasted. Instructions should be as important as the item arriving in good condition. These small company's are lacking.maybe one day I will learn.
I bought and paid for this item because I skipped over the fact that the Ubox 75 doesn't have headlight support on-board. Now I buy this module for $35.86 in stock assumed and now nothing no confirm or tracking. This company is lacking. Good products though.
Works good for the most part but has some weird issues with needing to reboot after every change and not controlling high beams as expected
very compact, neat design, vesc Express easy to install directly with vesc Tool. The user interface is good directly in the vesc app. You can also configure different types of LEDs for the front and rear.
I recommend.
just plugs in and lights work.
